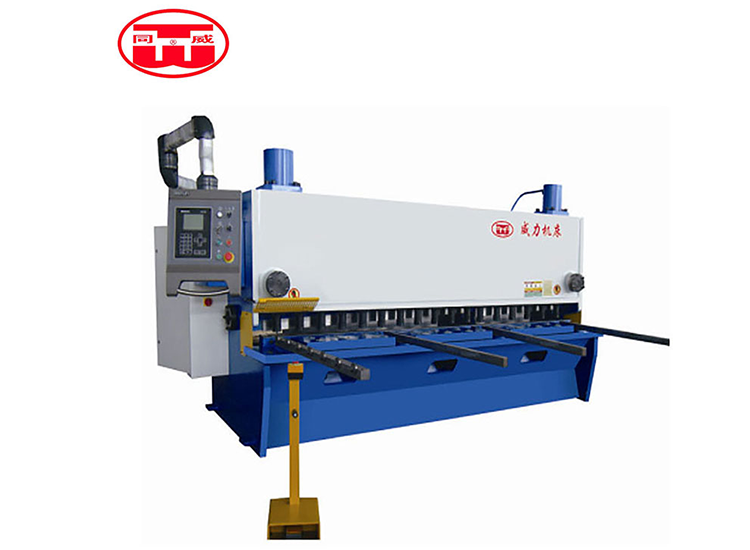

Guillotine shearing machine

Overview
Recommended Products

Place of Origin:	CHINA
Brand Name:	WEILI
Model Number:	CHK-6×2500, CHK-6×3200, etc.
Certification:	ISO9001

Minimum Order Quantity:	1
Price:	Depending on the model number
Packaging Details:	Wooden box, waterproof
Delivery Time:	20 days
Payment Terms:	30% deposit，pay the 70% balance before delivery
Supply Ability:	Advanced manufacturing capabilities for large-scale orders

● The second-generation hydraulic shearing machine has a fully steel welded structure, with heat treatment to eliminate internal stresses, resulting in excellent rigidity and stability.

● The entire structure is made of welded steel plates, with a robust frame and excellent rigidity and strong shock absorption capabilities.

● High value for money, strong technical capabilities, quality assurance, and durability.

Description

Special CNC System for Shearing Machine E22S

● High-definition LCD display. Available in both Chinese and English, displaying programming parameters on a single page for faster and more convenient programming.

● X and Y axis intelligent positioning, also adjustable manually if needed, eliminating the need for mechanical hand-crank positioning devices.

● Built-in hold-down time and unloading delay setting function, making operation even simpler. No need for a time relay, reducing costs.

● One-click backup and recovery function for parameters, allowing parameters to be restored as needed and reducing maintenance costs.

● Supports multi-step programming, allowing complex parts to be machined in one operation, improving production efficiency and machining precision.

● All buttons on the panel are micro-switch buttons that have undergone rigorous testing such as EMC, high and low temperature, and vibration tests to ensure product stability and longevity.

● Passed CE certification, meeting the needs of overseas markets.

Specifications

Model number	Cutting plate thickness	Cutting plate width	Total stroke times	Back stop stroke	Front support stroke	Shearing angle	Weight	Main motor power	Size (L×W×H)
Model number	mm	mm	min¹	mm	mm	°	kg	kw	mm
CHK-6×2500	6	2500	8-12	10-800	800	0.5-1.5	5500	7.5	3200×1800×2050
CHK-6×3200	6	3200	8-12	10-800	800	1.5	6400	7.5	3800×1800×2050
CHK-6×4000	6	4000	8-12	10-800	800	0.5-1.5	9000	7.5	4600×1970×2050
CHK-6×5000	6	5000	8-10	10-800	1000	0.5-1.5	14000	7.5	5600×2400×2450
CHK-6×6000	6	6000	8-10	10-800	1000	0.5-1.5	18000	7.5	6600×2400×2450
CHK-8×2500	8	2500	8-12	10-800	800	0.5-1.5	7000	11	3200×2000×2100
CHK-8×3200	8	3200	8-10	10-800	800	0.5-1.5	7800	11	3800×2000×2200
CHK-8×4000	8	4000	8-12	10-800	800	0.5-1.75	9800	11	4600×1970×2050
CHK-8×5000	8	5000	7-9	10-800	1000	0.5-1.5	18000	22	5600×2400×2450
CHK-8×6000	8	6000	7-9	10-800	1000	0.5-2	22000	22	5700×2400×2550
CHK-10×2500	10	2500	8-10	10-800	800	0.5-2	8500	18.5	3200×2000×2200
CHK-10×3200	10	3200	8-10	10-800	800	0.5-2.5	9500	18.5	3800×2400×2600
CHK-10×4000	10	4000	8-10	10-800	800	0.5-2.5	13000	18.5	4600×1970×2350
CHK-12×2500	12	2500	9-12	10-800	1000	0.5-2.5	9000	18.5	3200×2200×2400
CHK-12×3200	12	3200	8-12	10-800	800	0.5-2	10000	18.5	3800×2200×2450
CHK-12×4000	12	4000	8-10	10-800	800	0.5-2	15000	18.5	4600×2300×2450
CHK-12×5000	12	5000	6-8	10-900	800	0.5-2	24000	18.5	5600×2400×2550
CHK-12×6000	12	6000	6-8	10-800	1000	0.5-2	28000	18.5	6800×2450×2550
CHK-16×2500	16	2500	8-10	10-800	1000	0.5-2.5	11500	22	3200×2200×2400
CHK-16×3200	16	3200	8-10	10-800	800	0.5-2.5	12800	22	3800×2200×2650
CHK-16×4000	16	4000	6-9	10-900	800	0.5-1.5	17800	22	4600×2300×2650
CHK-16×5000	16	5000	5-7	10-800	800	1.5-3	28000	22	5600×2400×2850
CHK-20×2500	20	2500	6-9	10-800	800	0.5-2.5	14200	30	3200×2200×2400
CHK-20×3200	20	3200	6-9	10-800	800	0.5-2.5	16000	30	3800×2200×2650
CHK-20×4000	20	4000	6-9	10-800	1000	0.5-2.5	26000	30	4600×2300×2850
CHK-20×5000	20	5000	4-6	10-800	1000	1.5-3.5	33000	30	5600×2400×2950
CHK-20×6000	20	6000	4-6	10-800	1000	1.5-3.5	44000	30*2	6800×2450×3050
CHK-25×2500	25	2500	6-9	10-800	800	0.5-2.5	20000	45	3300×2500×2900
CHK-25×3200	25	3200	6-9	10-800	1000	0.5-2.5	22000	45	4200×2500×3200
CHK-25×4000	25	4000	6-9	10-800	1000	0.5-2.5	37000	55	4980×2650×2700
