Three-roller rolling machine

Overview
Recommended Products

Place of Origin:	CHINA
Brand Name:	WEILI
Certification:	ISO9001

Minimum Order Quantity:	1
Price:	Depending on the model number
Packaging Details:	Wooden box, waterproof
Delivery Time:	20 days
Payment Terms:	30% deposit，pay the 70% balance before delivery
Supply Ability:	Advanced manufacturing capabilities for large-scale orders

Description

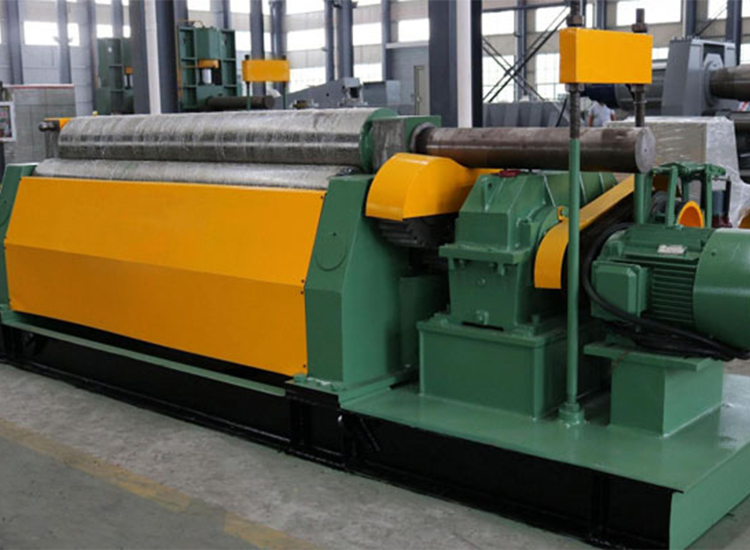

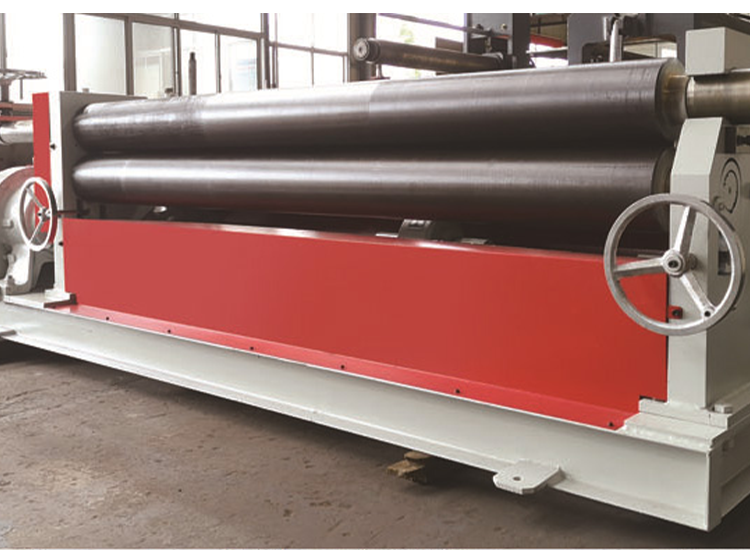

This machine is a mechanical asymmetric roll forming machine. It operates through the downward pressure exerted by the upper roll and the interaction between the upper and lower rolls. The output shaft of the main reducer is connected to the two lower rolls via a set of gears. The change in rotation direction of the roll shafts is achieved through the reversal of the main motor. The machine consists of one upper roll, two lower rolls, a lifting screw rod, a worm gear, and some auxiliary parts. The lifting movement of the upper roll is accomplished by the up-and-down movement of the lifting screw rod.

Competitive Advantage

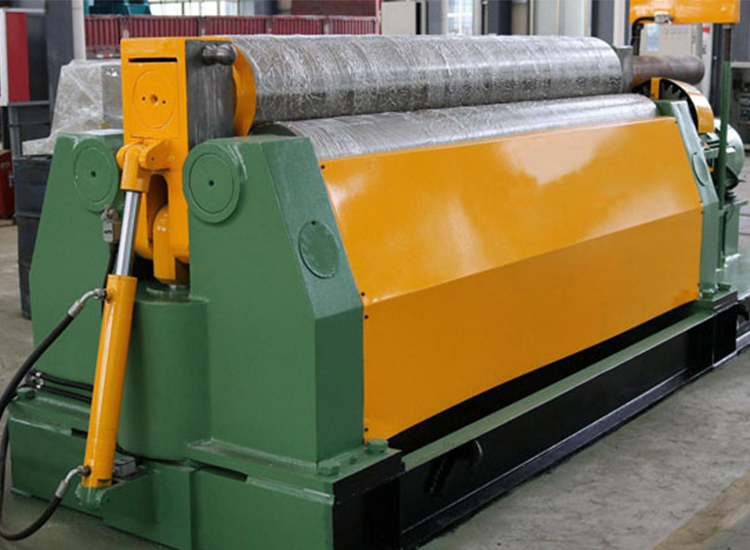

There are two types of three-roll bending machines: mechanical and hydraulic. The mechanical three-roll bending machine is divided into two categories: mechanical three-roll symmetrical bending machine and mechanical three-roll asymmetrical bending machine. This machine can bend metal sheets into circular, curved, and conical shapes within a certain range. As a mechanical symmetrical bending machine, it operates through the downward pressure of the upper roll and the rolling action of the upper and lower rolls. The output shaft of the main reducer is connected to the two lower rolls via a set of gears. The change in rotation direction of the roll shafts is achieved through the reversal of the main motor. The machine consists of one upper roll, two lower rolls, a lifting screw rod, a worm gear, and some auxiliary parts. The lifting movement of the upper roll is achieved through the up-and-down movement of the lifting screw rod. This type of bending machine is a classic mechanical model known for its durability, robustness, low investment, ease of operation, broad adaptability to various working conditions, and convenient maintenance.
