Opening shear line

Overview

Overview

Place of Origin	CHINA
Brand Name	WEILI
Model Number	Model 1600 /, Model 1800
Certification	ISO9001

Minimum Order Quantity:	1
Price:	Depending on the model number
Packaging Details:	Wooden box, waterproof
Delivery Time:	20 days
Payment Terms:	30% deposit，pay the 70% balance before delivery
Supply Ability:	Advanced manufacturing capabilities for large-scale orders

Description

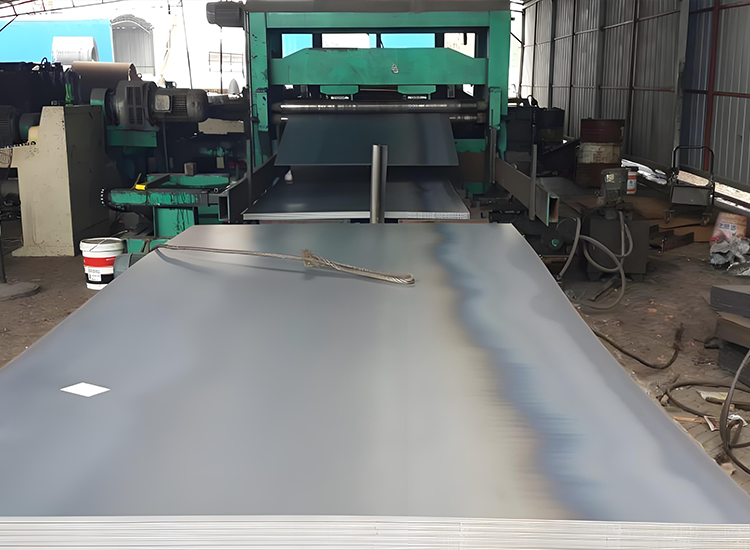

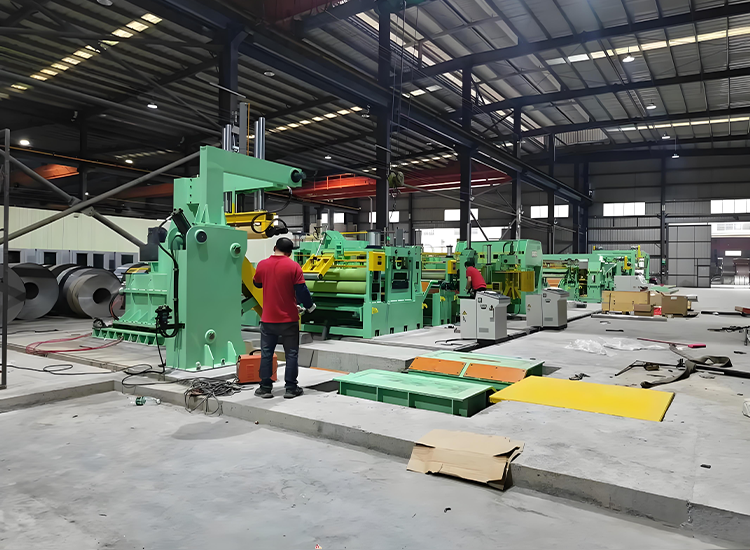

The hot-rolled transverse cutting line utilizes highly reliable mechanical performance to achieve high-quality flatness of the sheet material. A high-precision imported machining center ensures the complete elimination of stress in the sheet material. An imported fixed length system ensures accurate length determination. A friendly human-machine interface guarantees ease of operation. The main functions of this line include unwinding, straightening, trimming, and cutting the steel strip into steel plates of a specified length. The cut steel plates then pass through a steel plate straightening machine, are marked, and then enter a stacker.

Specifications

Model Type	1600 Type	1800 Type	2000 Type	2200 Type
Raw Coil Material	Hot-rolled steel plate, hot-rolled pickled steel plate, stainless steel plate, etc.
Material Thickness	1.2mm - 6.0mm	3mm - 12mm	5mm - 20mm	8mm - 25mm
Material Width	1600mm (MAX)	1800mm (MAX)	2000mm (MAX)	2200mm (MAX)
Coil Weight	30ton (MAX)	30ton (MAX)	30ton (MAX)	30ton (MAX)
Cutting Precision	±0.8mm	±1.5mm	±1.8mm	±2.0mm
Unit Speed	60m/min (MAX)	40m/min (MAX)	25m/min (MAX)	25m/min (MAX)

Model Type	650 Type	800 Type	800 Type	1250 Type	1600 Type	1800 Type	2000 Type	2200 Type
Raw Coil Material	Cold-rolled steel plate, galvanized steel plate, color-coated steel plate, stainless steel plate, etc.
Material Thickness	0.2mm - 2.3mm	0.2mm - 2.3mm	0.5mm - 3mm	0.3mm - 2.3mm	0.5mm - 3mm	0.5mm - 3mm	0.5mm - 3mm	0.5mm - 3mm
Material Width	650mm (MAX)	800mm (MAX)	800mm (MAX)	1250mm (MAX)	1600mm (MAX)	1800mm (MAX)	2000mm (MAX)	2200mm (MAX)
Coil Weight	8ton (MAX)	10ton (MAX)	10ton (MAX)	20ton (MAX)	20ton (MAX)	20ton (MAX)	20ton (MAX)	20ton (MAX)
Cutting Precision	±0.3mm	±0.3mm	±0.3mm	±0.3mm	±0.5mm	±0.5mm	±0.5mm	±0.5mm
Unit Speed	80m/min (MAX)	80m/min (MAX)	80m/min (MAX)	60m/min (MAX)	60m/min (MAX)	60m/min (MAX)	60m/min (MAX)	60m/min (MAX)

Model Type	400 Type	800 Type	800 Type	1250 Type	1600 Type	1800 Type
Raw Coil Material	Cold-rolled steel plate, galvanized steel plate, color-coated steel plate, stainless steel plate, etc.
Material Thickness	0.2mm - 2.0mm	0.2mm - 2.3mm	0.5mm - 3mm	0.3mm - 2.3mm	0.5mm - 3mm	0.5mm - 3mm
Material Width	400mm (MAX)	800mm (MAX)	800mm (MAX)	1250mm (MAX)	1600mm (MAX)	1800mm (MAX)
Coil Weight	5ton (MAX)	10ton (MAX)	10ton (MAX)	20ton (MAX)	20ton (MAX)	20ton (MAX)
Cutting Precision	Cutting: ±0.3mm; Acceleration/Deceleration: ±0.4mm	Same as above	Same as above	Same as above	Same as above	Same as above
Cutting Speed	200 cuts/min	160 cuts/min	120 cuts/min		120 cuts/min
Unit Speed	70m/min - 90m/min				80m/min
