| Place of Origin: | CHINA |
| Brand Name: | WEILI |
| Model Number: | HM series, C series，etc. |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 1 |
| Price: | Depending on the model number |
| Packaging Details: | Wooden box, waterproof |
| Delivery Time: | 20 days |
| Payment Terms: | 30% deposit，pay the 70% balance before delivery |
| Supply Ability: | Advanced manufacturing capabilities for large-scale orders |
Description

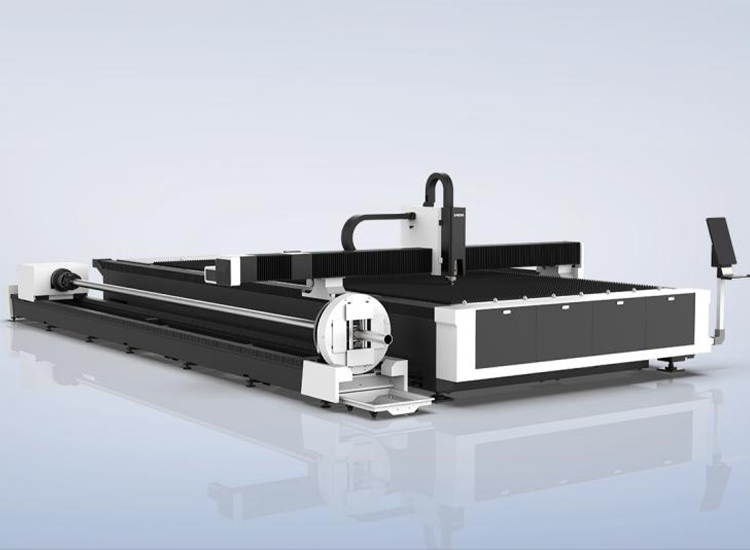

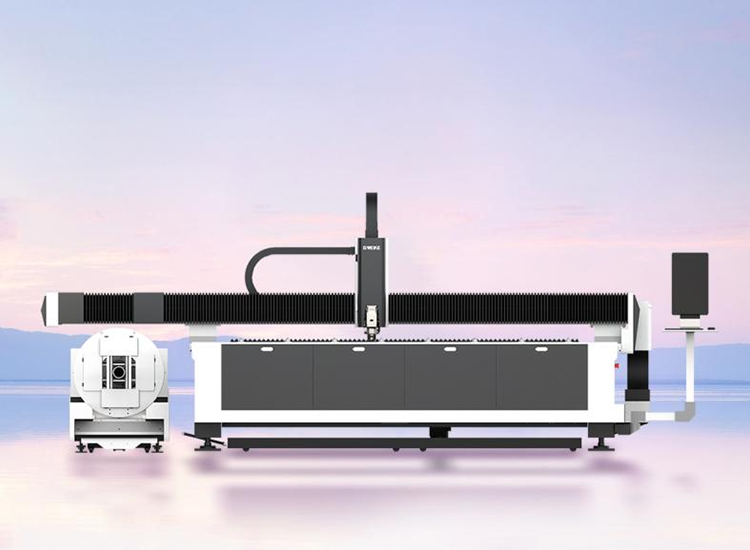

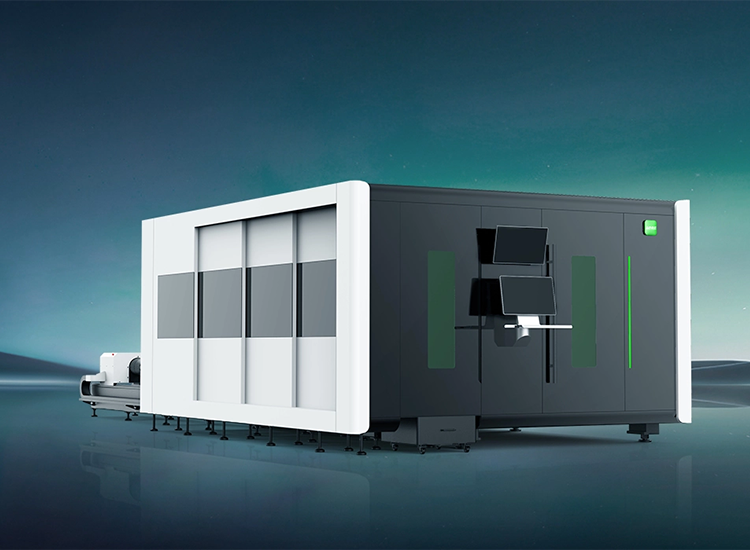

HM Series All-Encompassing Panel Pipe Integrated Machine A machine with dual functions, capable of both processing sheet materials and cutting pipe materials, which helps users save procurement costs and reduces the floor space required by more than 50%, thereby increasing the utilization of the workshop. It has obtained certifications from CE-TUV, FDA, RoHS, and ETL.
Applications
Senfeng Intelligent Operating System features a powerful cutting process database with readily accessible cutting parameters, significantly improving material utilization efficiency.
1. Large-sized touchscreen interface, simple operation, high-definition display of the cutting process
2. Monitoring of core components to ensure safety in software, peripherals, collisions, and laser cutting
3. Integration of various cutting processes such as automatic edge detection, multi-level perforation, and flying cutting
Specifications
Laser power: 1.5 - 6 kW

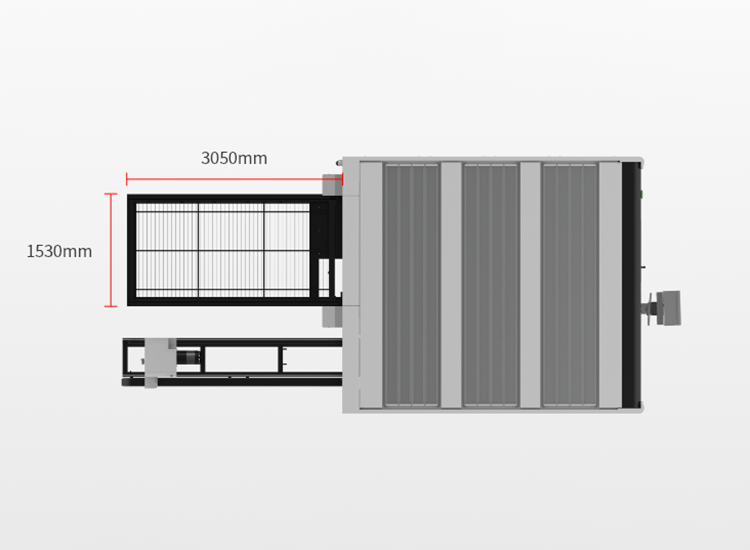

The processing dimensions of the sheet material are 3050*1530 - 6050*2030 mm.
The processing size of the pipe is 20 to 220 mm.
The maximum load capacity of the workbench is 3000 kilograms.
Competitive Advantage
1. One machine, two uses
2. Clean cutting
3. Doubled production efficiency
4. Efficient and hassle-free
