Four-column hydraulic press machine

Description

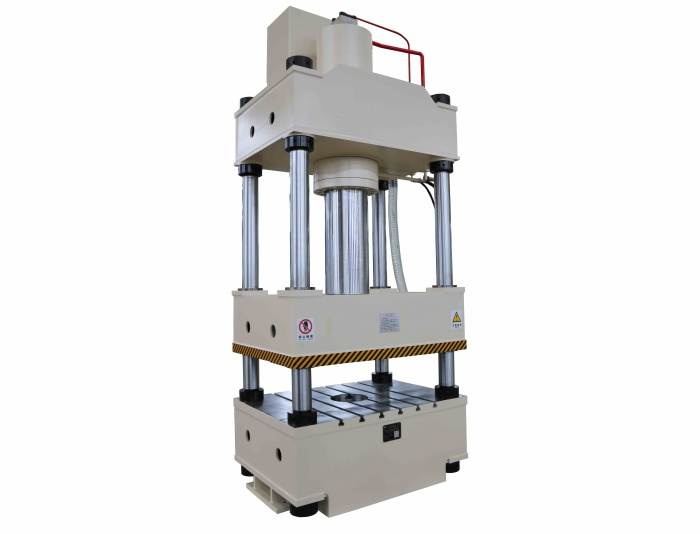

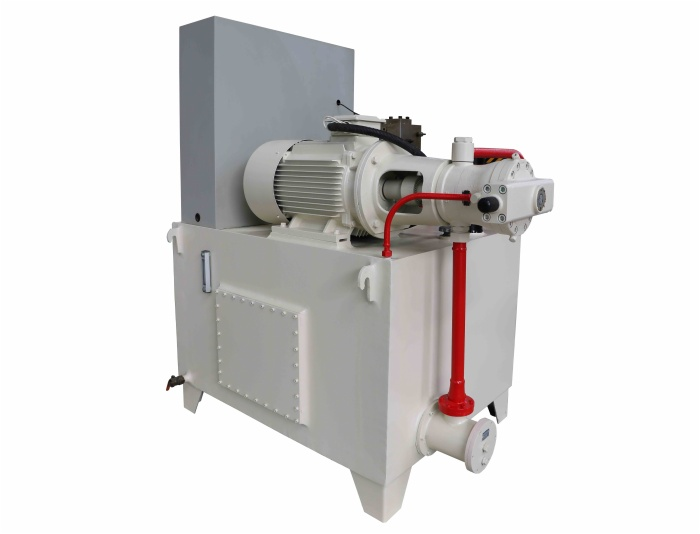

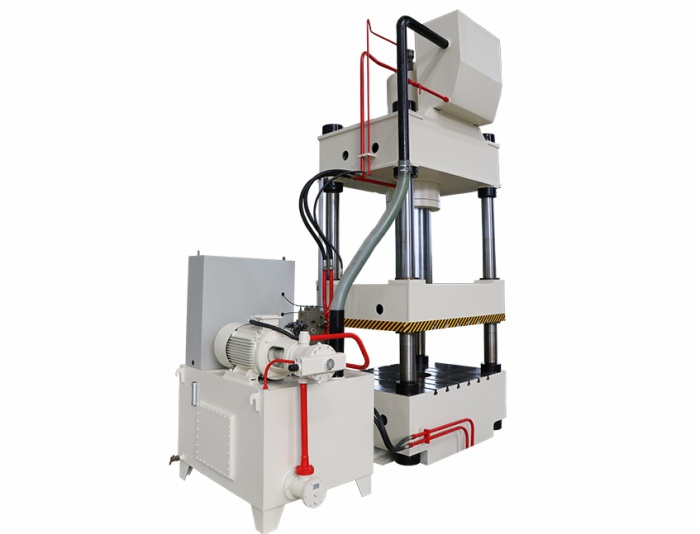

The equipment is composed of two major parts: the main unit and the control mechanism. They are connected through pipelines and electrical devices, forming a cohesive whole. The main unit consists of a three-beam and four-column frame body, a main cylinder, and a limiting device. The control mechanism comprises a hydraulic pump station (power system) and an electrical cabinet.

Competitive Advantage

♦With a three-beam and four-column structure, optimized by computer design, it is simple, cost-effective, and practical.

♦The hydraulic control system employs an integrated cartridge valve system, which ensures reliable operation, a long lifespan, minimal hydraulic impact, and reduces the number of connection pipelines and potential leak points.

♦An independent electrical control system ensures reliability, straightforward operation, and ease of maintenance.

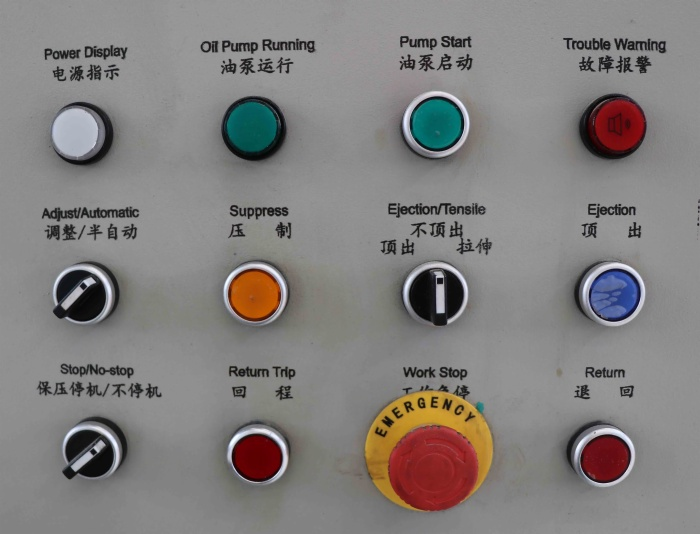

♦It employs centralized button control, with two operational modes: adjustment (point-to-point operation) and single operation (semi-automatic).

♦It can achieve both fixed-cycle and fixed-pressure forming processes and also features features such as hold-open delay.

♦ The work pressure and travel distance can be adjusted within specified limits based on the requirements of the process.
